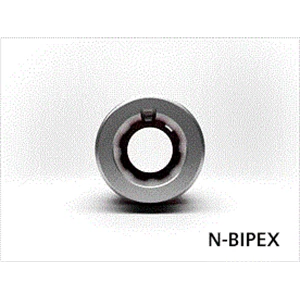

Specification of Siemens Coupling Flexible N-BIPEX Claw
The new N-BIPEX® copes with just these situations and offers not only higher maximum torques but also an extended range of bores comparable to that normally available only with steel hubs.
With its cast hubs, the N-BIPEX allows greater freedom when designing the cam geometry, thereby laying the foundation for the innovative Curved Design. Compared to the milled cams typically available on the market, this design results in uniform loading of the elastomer compression bodies under all conditions and, in particular, prevents inward deformation of the cam ring due to load peaks that can cause greater wear. Hubs made of high-quality nodular cast iron allow the N-BIPEX to cope with high rotational speeds and critical bores.
N-BIPEX provides reserves that are considerably greater than those normally available on the market, thus achieving a significant reduction in wear.
The N-BIPEX’s “one hub to meet all requirements” concept allows the complexity to be minimized by reducing the number of versions. The end user no longer needs to choose between gray cast iron, nodular cast iron and steel. N-BIPEX covers the entire torque spectrum from 12 Nm to 4,650 Nm with only one single hub version made of nodular cast iron.
