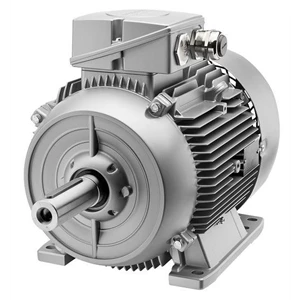

Specification of SIMOTICS XP Explosion-Proof Motors
With the explosion-protected motors SIMOTICS XP from Siemens you are going further than the basic safety requirements: our rugged Ex motors operate completely reliably even under the most extreme conditions – both DOL and VSD operation - and this has been proven worldwide a hundred thousand times over. And what is more, there are no gaps in our Ex motor range, they meet all requirements with maximum safety and high efficiency during operation.
Technical data overview
Brief overview
Type of protection:
Increased safety
Ex e
Flameproof enclosure
Ex d
Non-sparking
Ex nA
Dust explosion protection
Ex tb, Ex tc
NEMA XP
Power range: *
0.12 - 165 kW
0.25 - 460 kW
0.09 - 1000 kW
0.09 - 1000 kW
1 - 300 HP
Voltage range:
All commonly used voltages
230, 460 & 575 V with 60 Hz
Frame size: *
63 M - 315 L
71 M - 355
63 M - 450
63 M - 450
143T - 449T
Design:
All common construction types
Rated speed:
750 - 3600 min -1
900-3600 min -1
Rated torque:
0.6 - 8090 Nm
1.5-882 lb-ft
Application area:
Ex-Zone 1
II 2G
Ex e IIC T1-T3
Ex-Zone 1
II 2G
Ex de IIC T1-T6
Ex-Zone 2
II 3G
Ex nA IIC T3
Ex-Zone 21/22:
Zone 21:
II 2D
Ex tb
IIIC T...
Zone 22:
II 3D
Ex tc
IIIB T...
UL listed
Class I, Groups C&D
Class II, Groups F&F,
Division 1 hazardous areas
